Encoder, 716 400 Pulse High Voltage LineDriver Ouput 3/8 Double Shaft, Encoder Products716-0400-HV-S
|
Encoder, 716 400 Pulse High Voltage LineDriver Ouput 3/8 Double Shaft, Encoder Products 716-0400-HV-S-6-D-S-Y.
Model 716 Specifications
| Input Voltage.......... |
4.75 to 28 VDC max for temperatures up to 85° C
4.75 to 24 VDC for temperatures between 85° C
and 100° C.
|
| Input Current.............. |
80 mA maximum with no output load |
| Input Ripple............... |
100 mV peak-to-peak at 0 to 100 kHz |

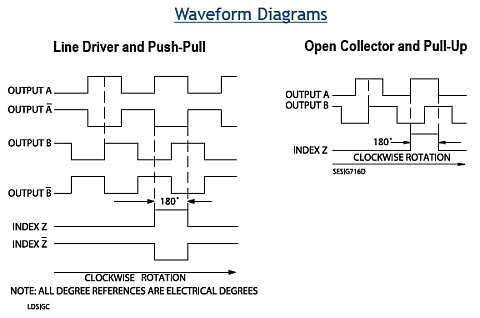

| Output Format.......... |
Incremental- Square wave with single channel |
| Output Types............. |
Open Collector- 250 mA max per channel Pull-Up- 250 mA max per channel
Push-Pull- 20 mA max per channel
Line Driver- 20 mA max per channel (Meets RS
422 at 5 VDC supply)
|
| Max Frequency.......... |
1 to 2500 CPR 125 kHz, 2501 to 5000 CPR 250
kHz, 5001 to 10,000 CPR 500 kHz
Standard Cube- 0 to 20 kHz
|
Index.........................
|
Standard Cube- Once per revolution,
180° electrical minimum non-gated
|
Symmetry..................
|
180° (±18°) electrical |
Quad Phasing............
|
90° (±22.5°) electrical |
| Rise Time.................. |
Less than 1 microsecond |
Accuracy....................
|
Within 0.05° mechanical from one cycle to any other cycle, or 3 arc minutes
|
| Max Speed................ |
6000 RPM. Higher shaft speeds achievable, contact Customer Service.
|
Shaft Material............
|
303 stainless steel |
Housing......................
|
Black non-corrosive finished 6063-T6 aluminum |
Bearings...................
|
Precision ABEC Ball Bearings |
Operating Temp.........
|
0° to 85° C or 0° to 100° C at 5 to 24 VDC
|
Storage Temp............
|
- 25° to +85° C |
Humidity.....................
|
98% RH non-condensing |
Vibration.....................
|
10 g @ 58 to 500 Hz |
Shock.........................
|
50 g @ 11 ms duration |
|
|
